Product Photos

EarthBuster Product Photo Gallery

Click any thumbnail image below to open the larger viewing gallery.

044

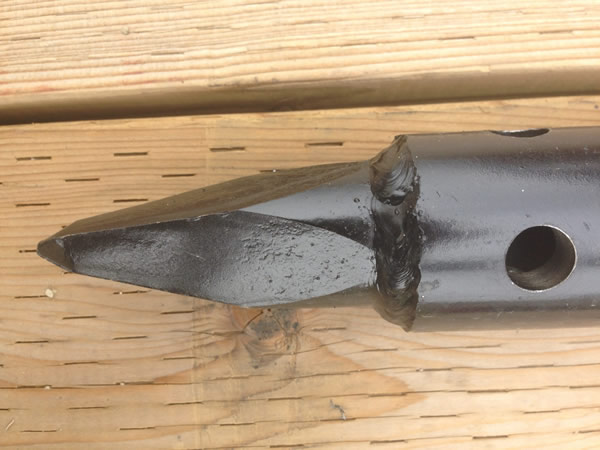

Probe tip and one of three blow holes.

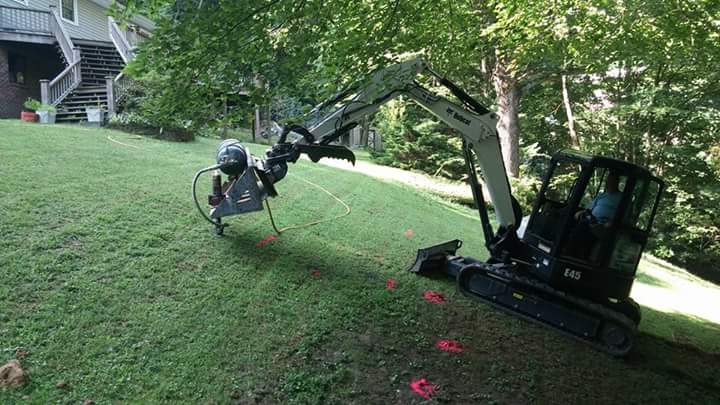

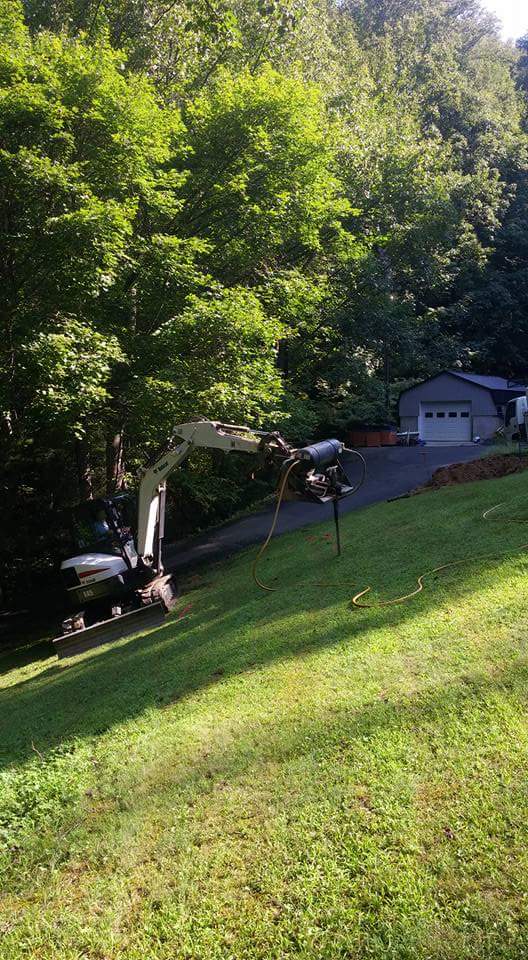

On a hillside
The mini-excavator makes a great tractor for the EarthBuster, even on a steep incline. With a mini-ex, you can even reach over fences where driving access limited.

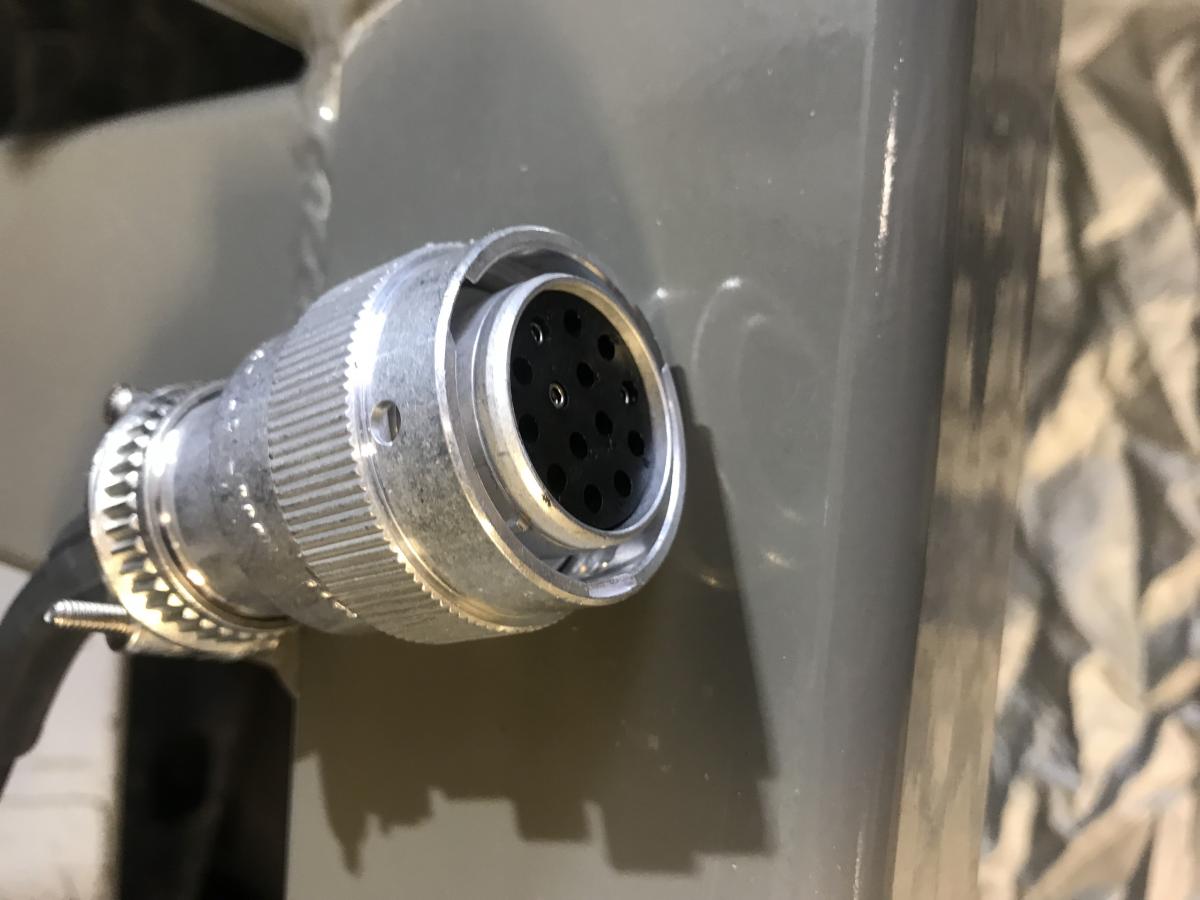

Water tight connector for electrical solenoids valve release water tight connector
Water tight connector for electrical solenoids valve release water tight connector

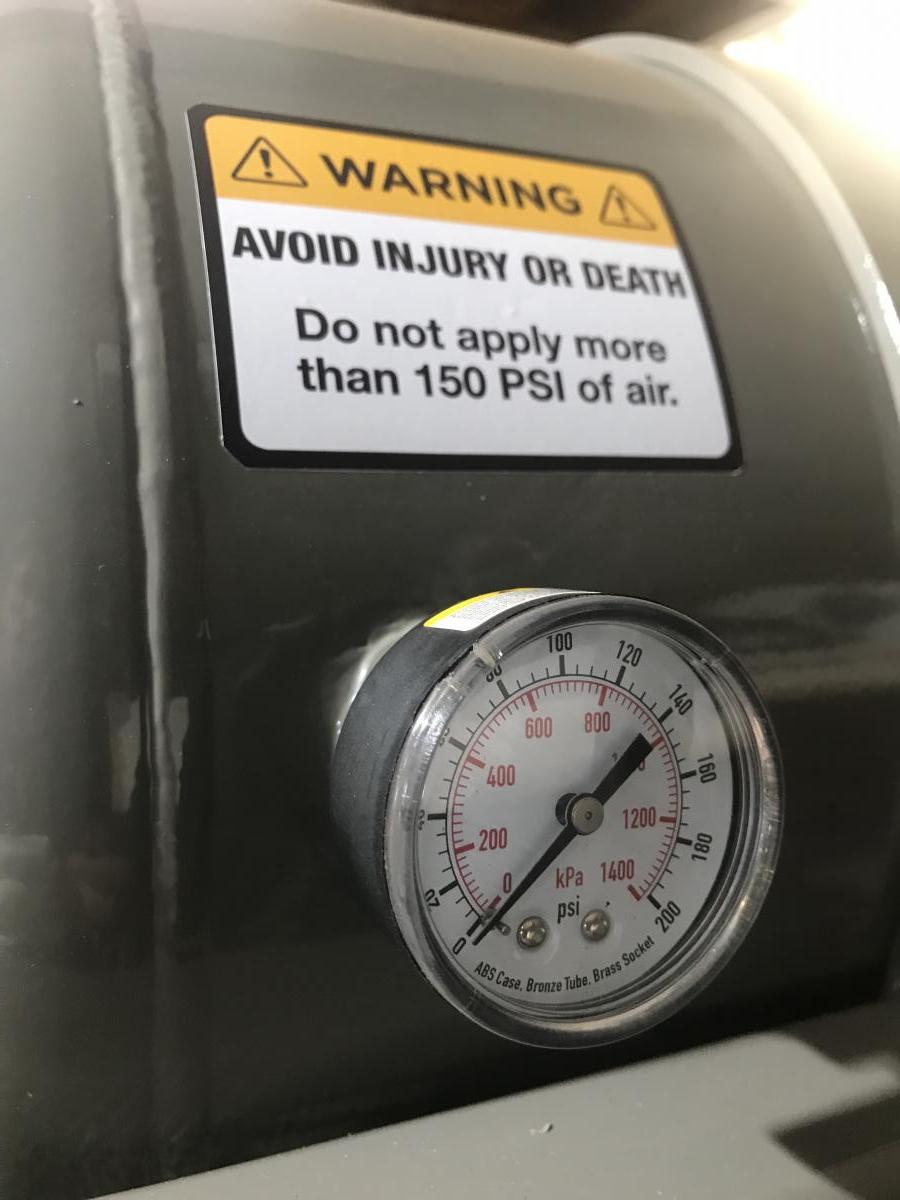

Tank pressure
Tank pressure gauge

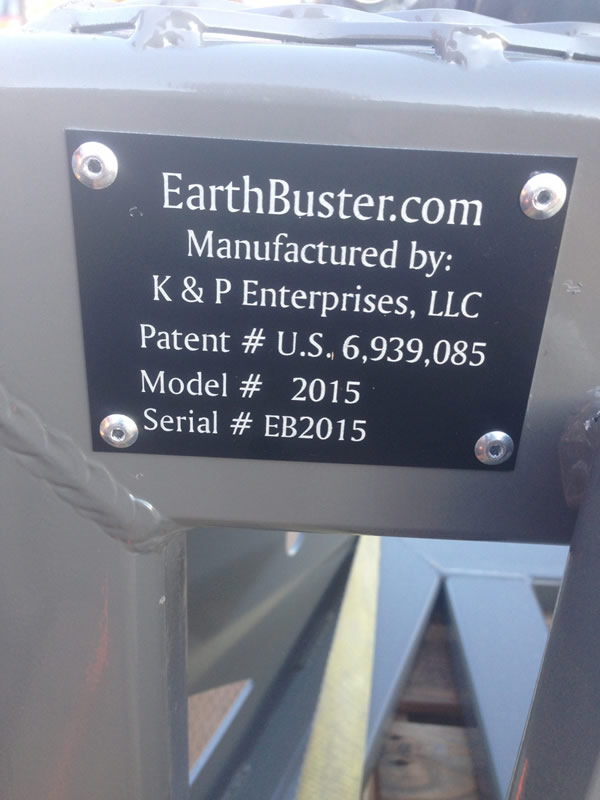

EarthBuster ID Plate
ID plate.
EarthBuster Mounted with Compressor
EarthBuster Mounted with Compressor

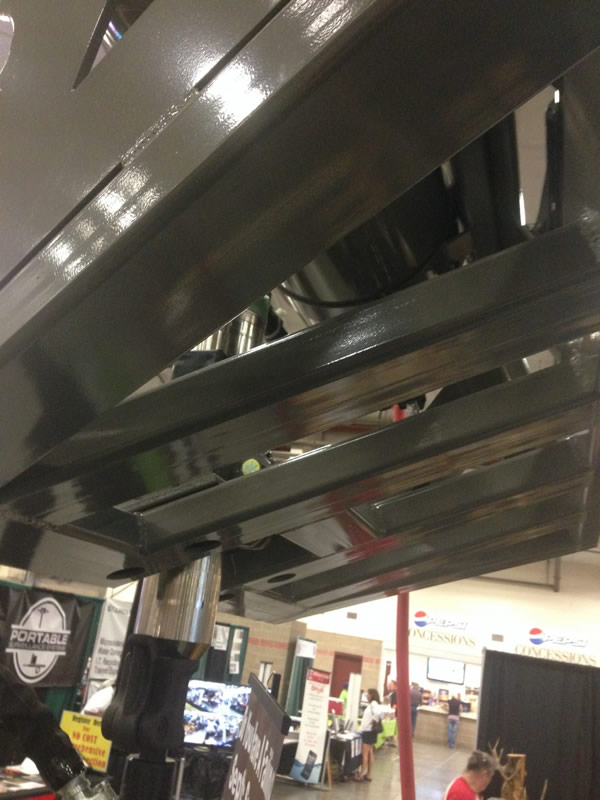

Bottom View
The undercarriage of the EarthBuster's heavy frame.

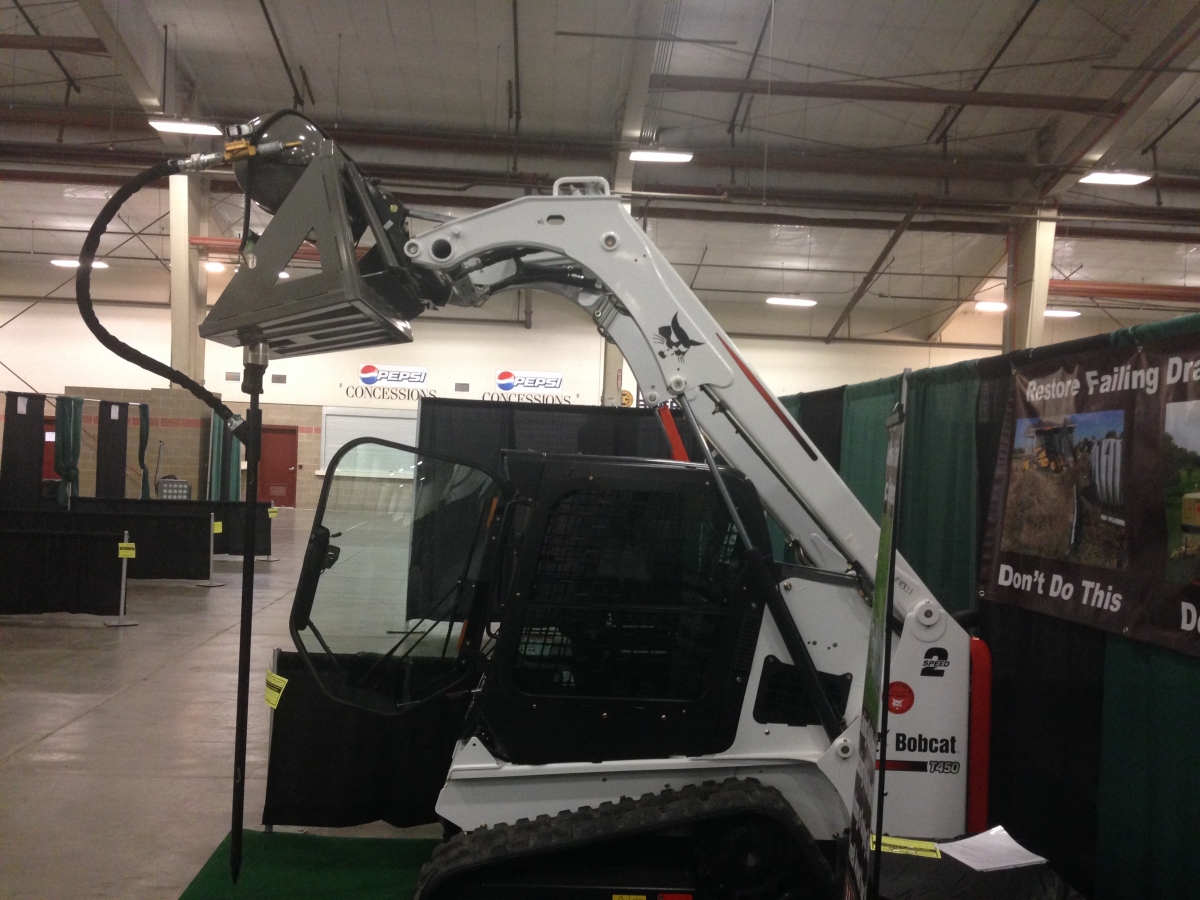

EarthBuster on Bobcat T450
EarthBuster on Bobcat T450
039

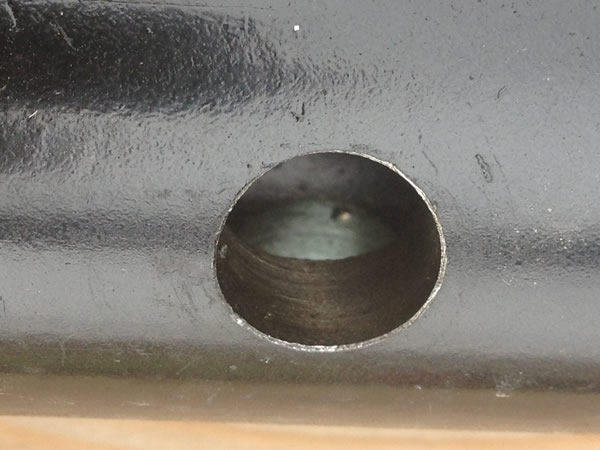

A probe blow hole up close.

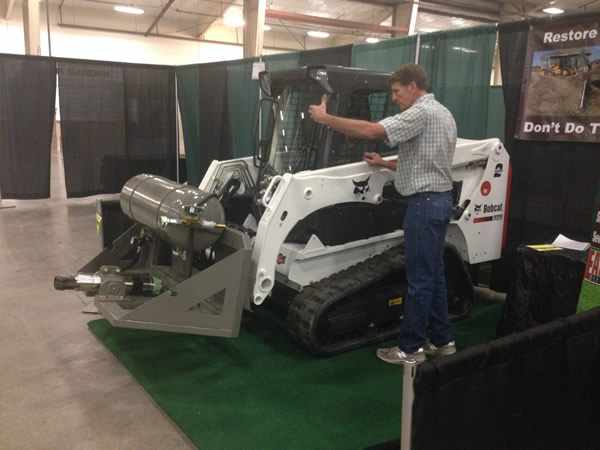

Mounted on a Bobcat T450
The EarthBuster displayed at a local home improvement show.
Made in the USA
Front view of the EarthBuster.
036

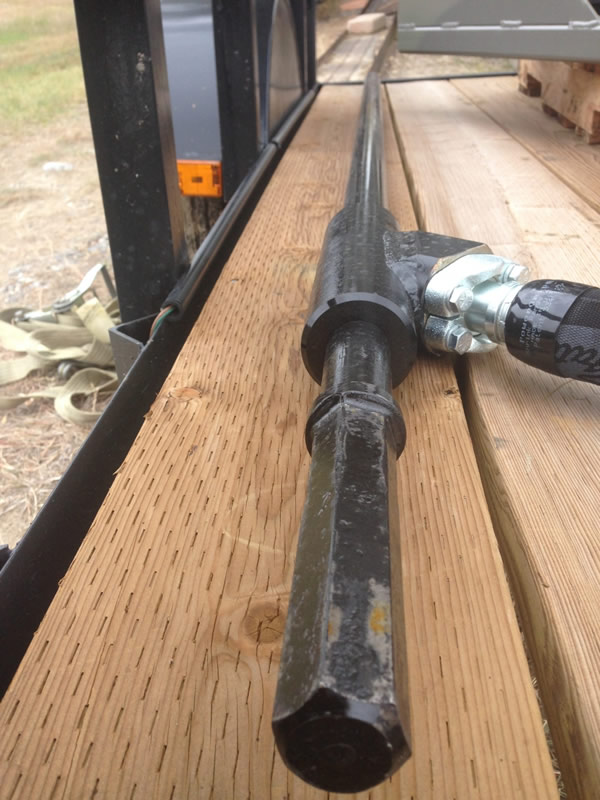

Top of the probe and air hose junction.
Sullair air hammer
Sullair Air Hammer
018

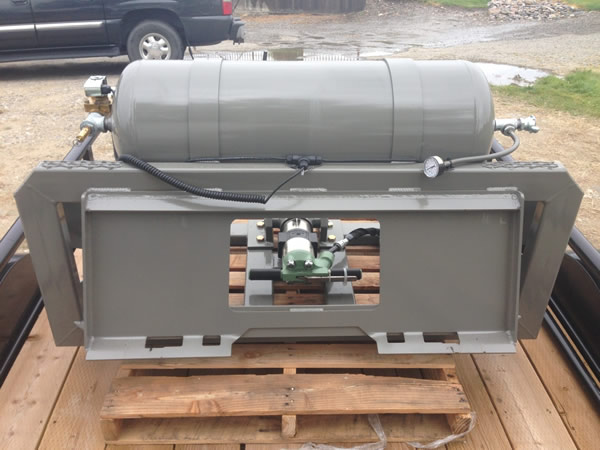

The back side of the EarthBuster, showing the quick-attach plate.

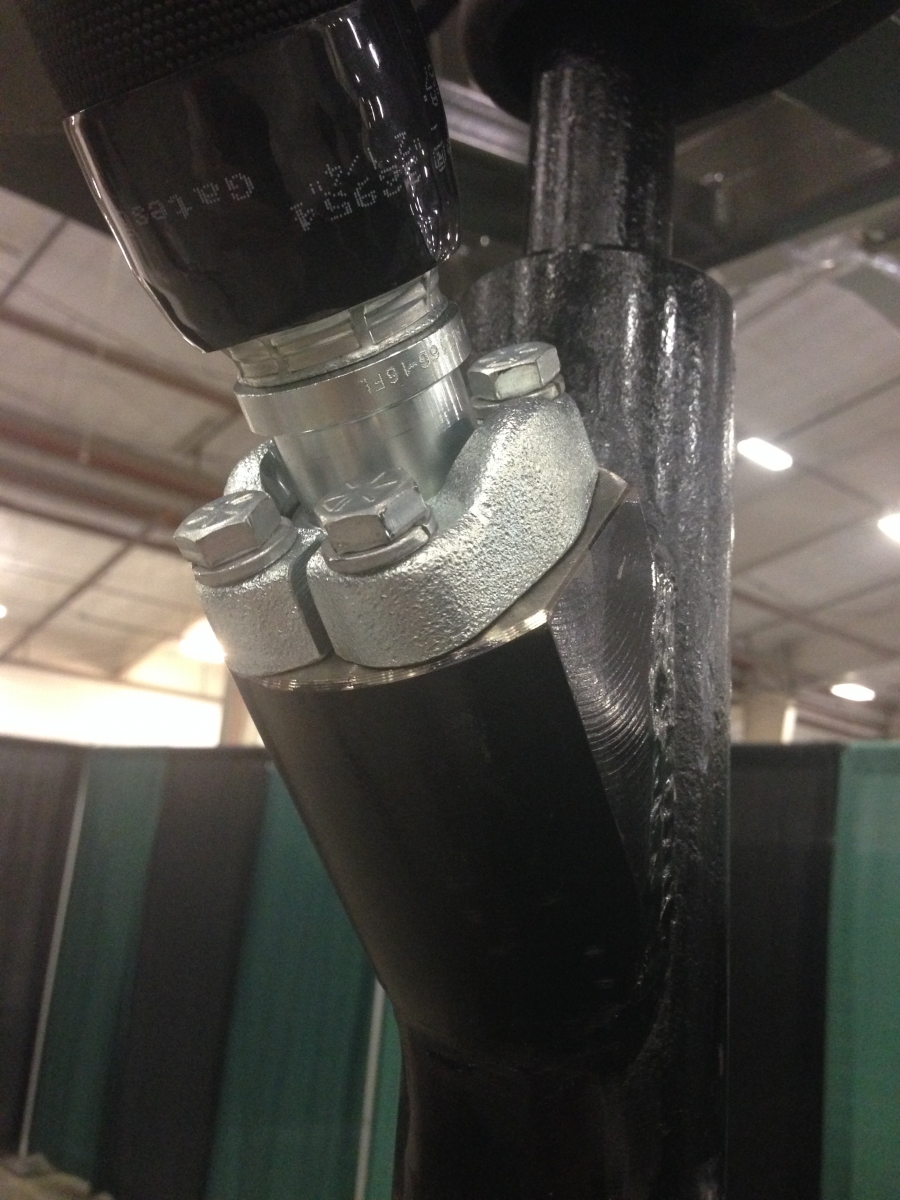

Air Hose Fitting on Probe Top
Air Hose Fitting on Probe Top

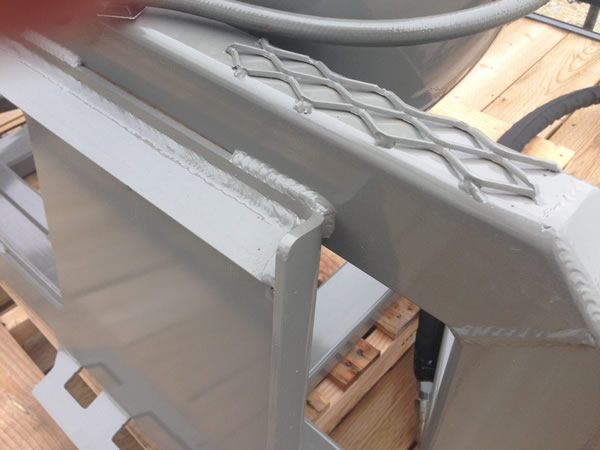

Expanded Steel Foot Grip
The expanded steel foot grip allows you to step safely onto the EarthBuster frame (even when wet) to get in and out of a front-access tractor cab--such as on a skidsteer or tracksteer.

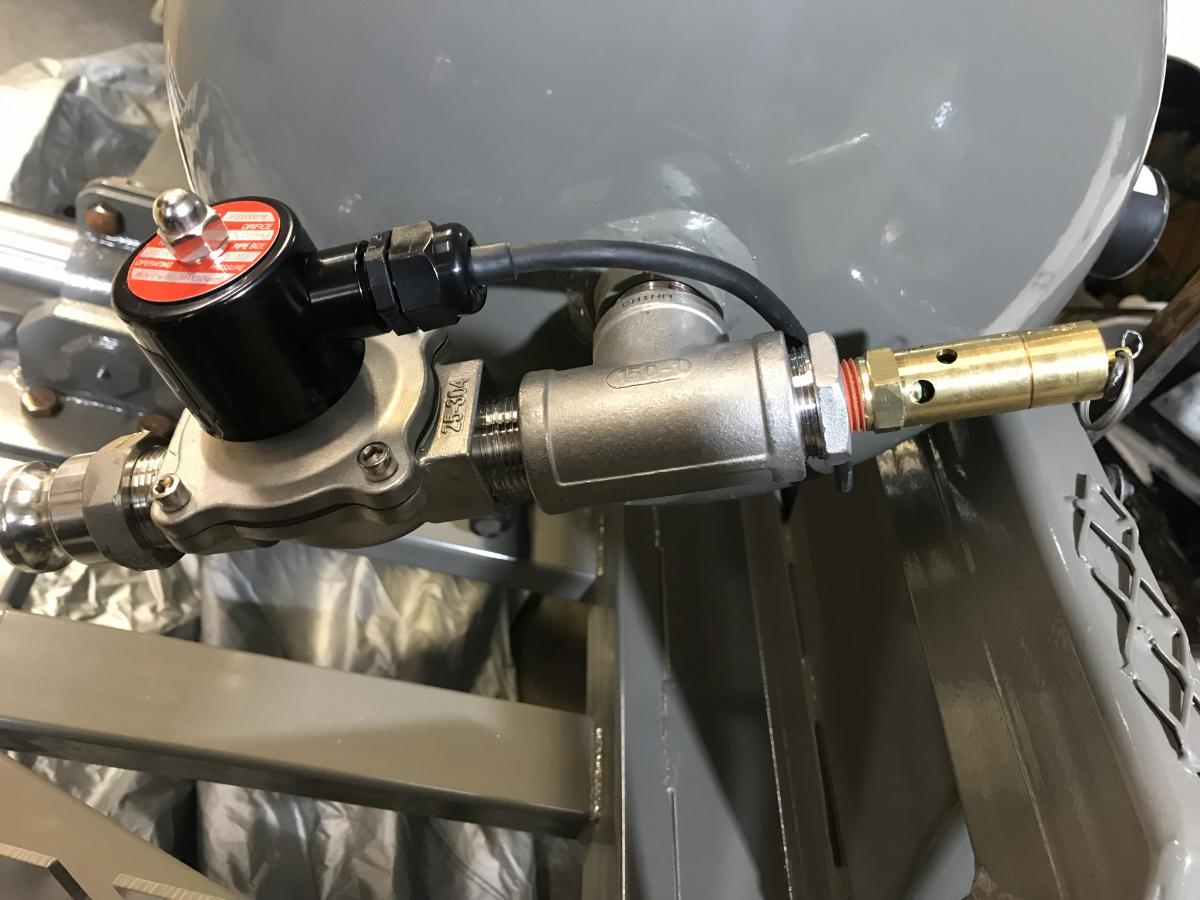

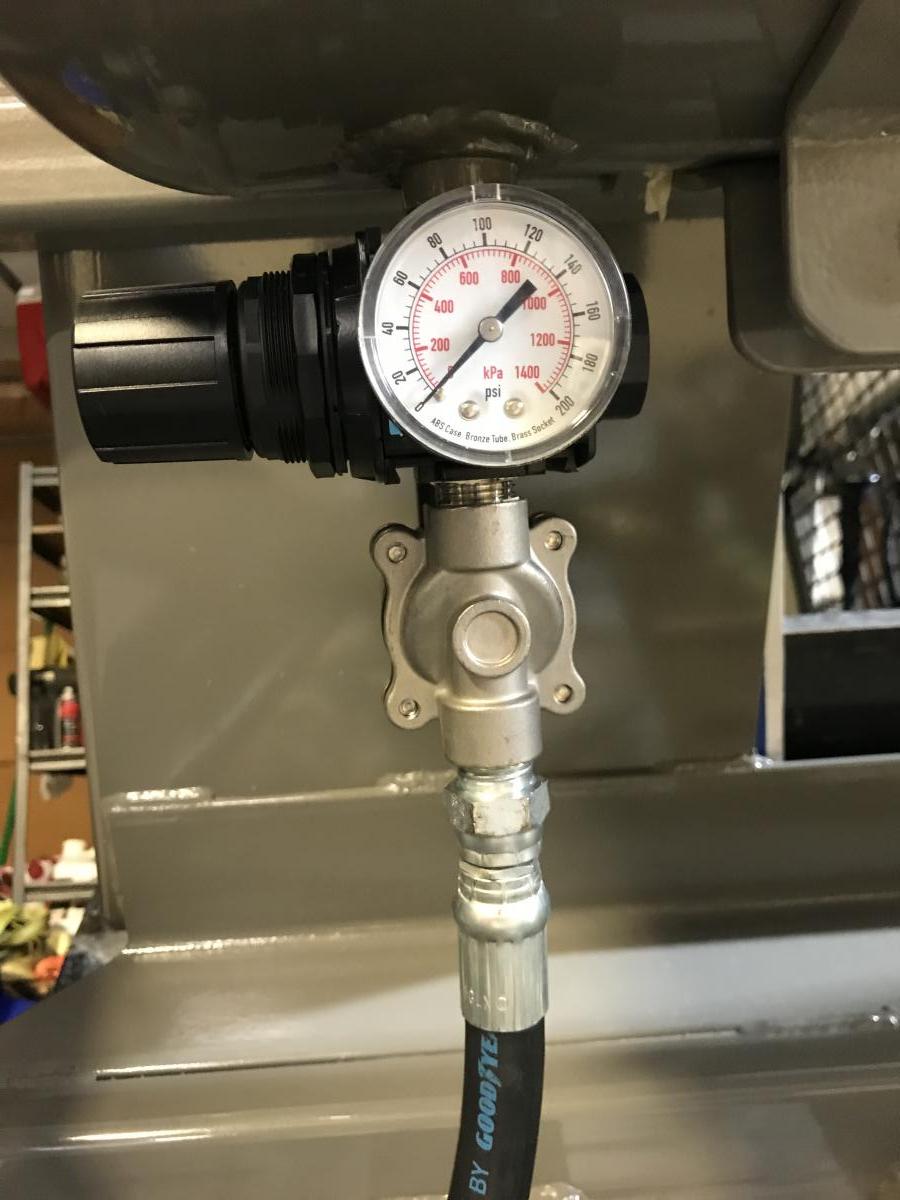

Air hammer regulator and solenoid
The air hammer regulator and solenoid.

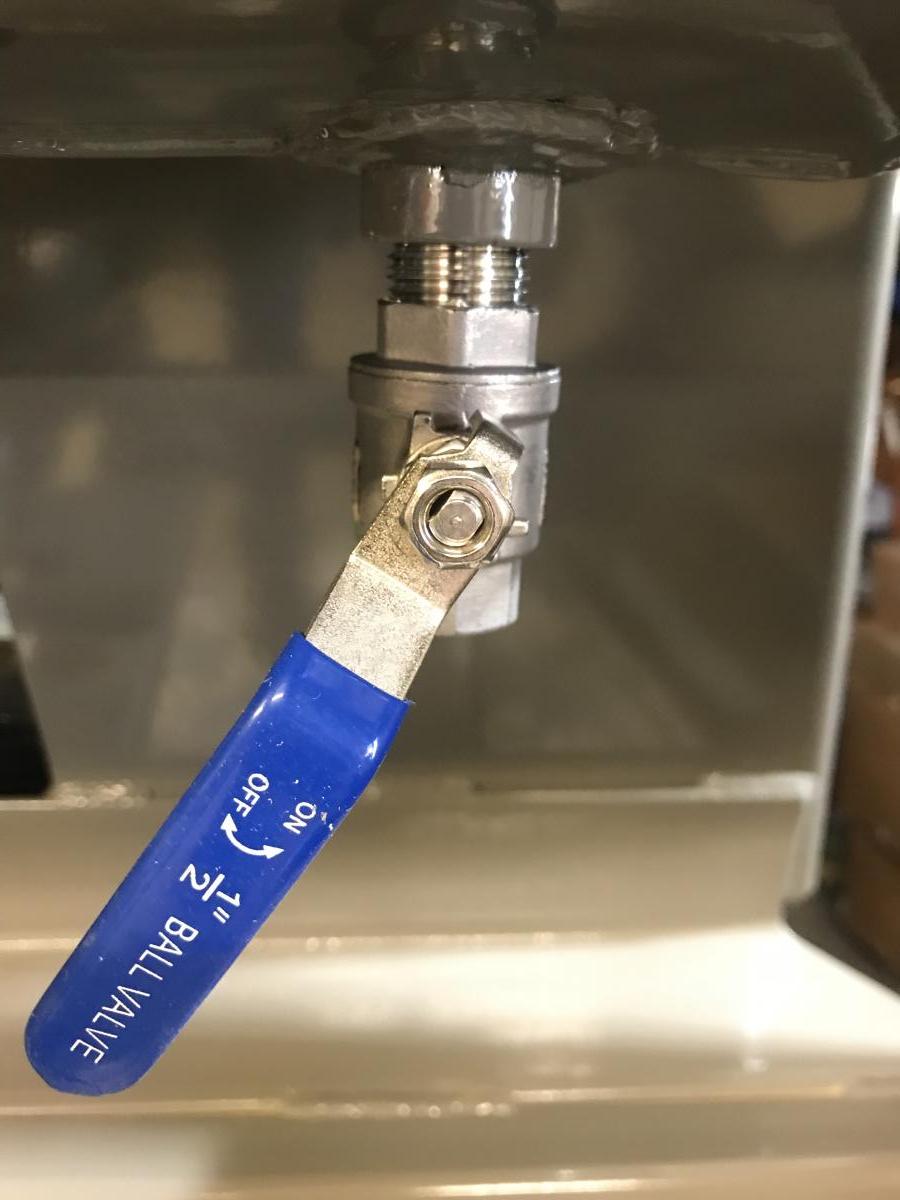

Release and drain valve
Release and drain valve--used to release pressure from the tank after use.
Mini-Ex
This EarthBuster service provider has marked his intended probing locations ahead of time.
Probe air release valve and pressure safety valve
Probe air release valve and pressure safety valve

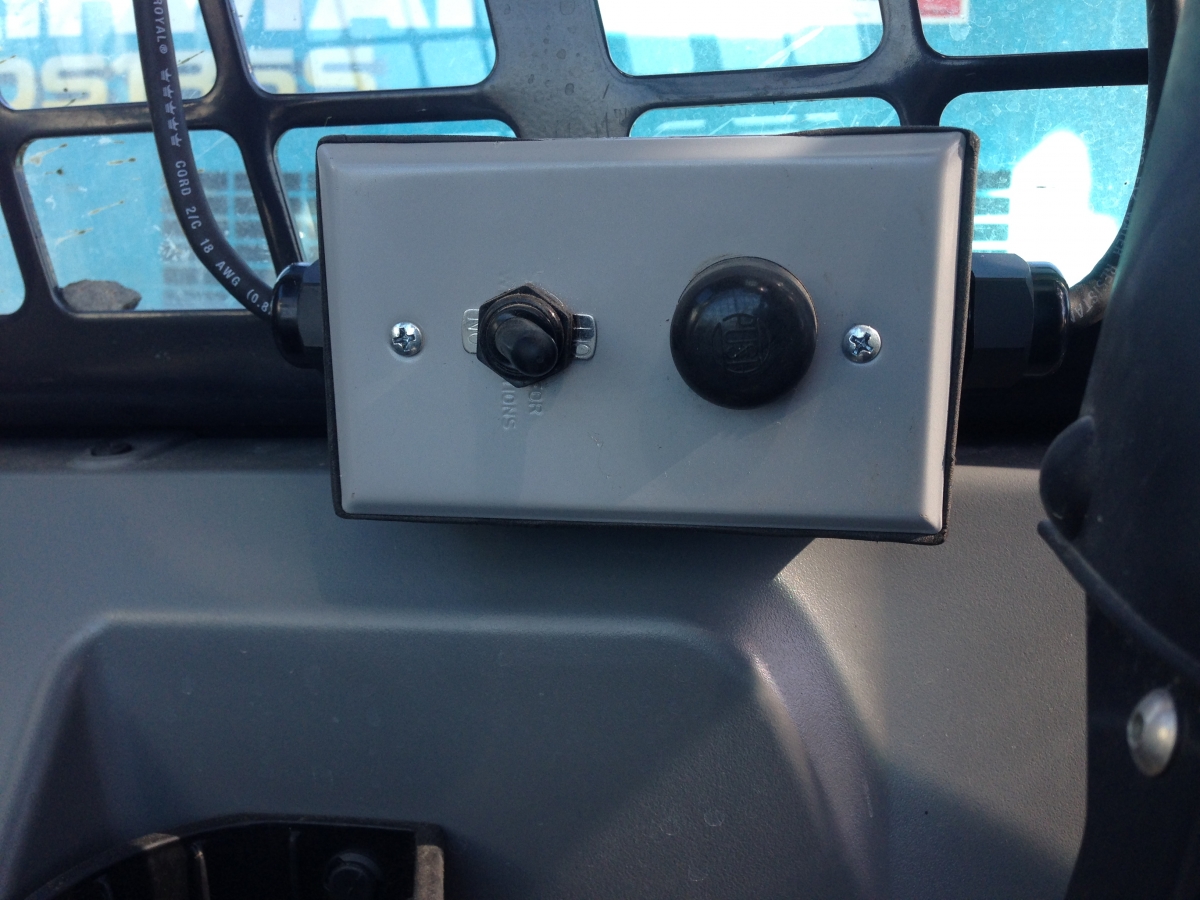

Hammer and Probe control
Hammer and Probe control

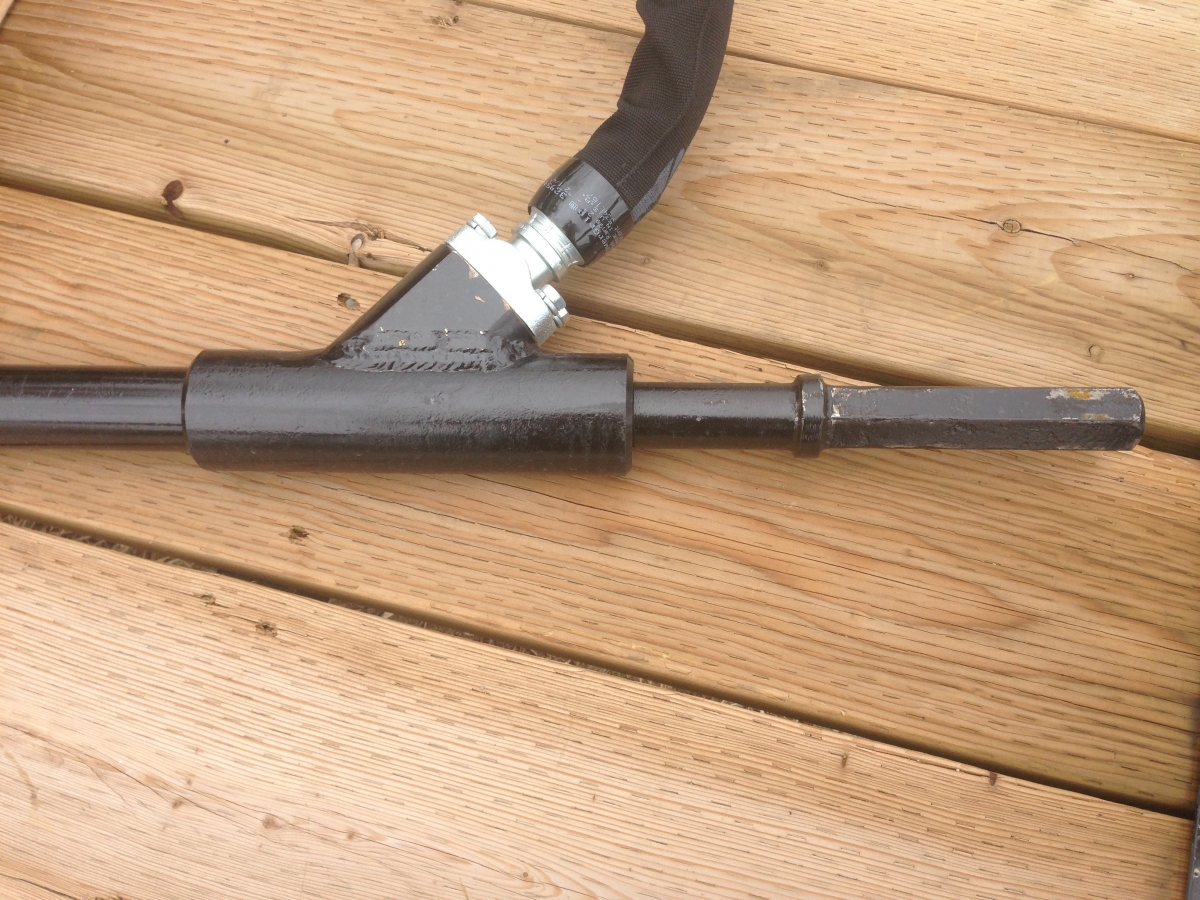

Probe Top
This is the top of the probe.
Mounting the Probe
Ken mounts the probe into the Sullair air hammer.

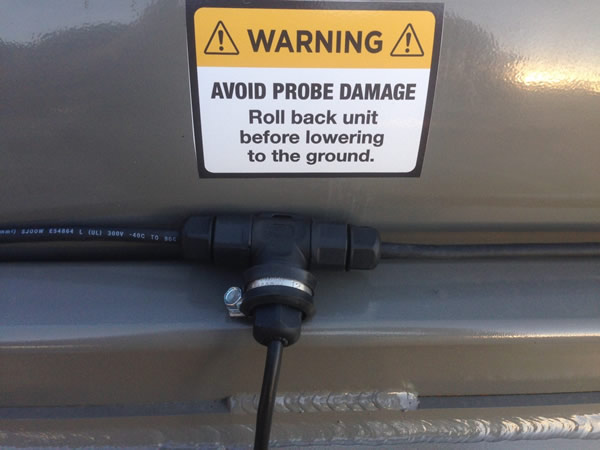

EarthBuster probe label and wiring junction
The probe warning label is mounted where the operator can see it during operation.
Below is the writing junction.

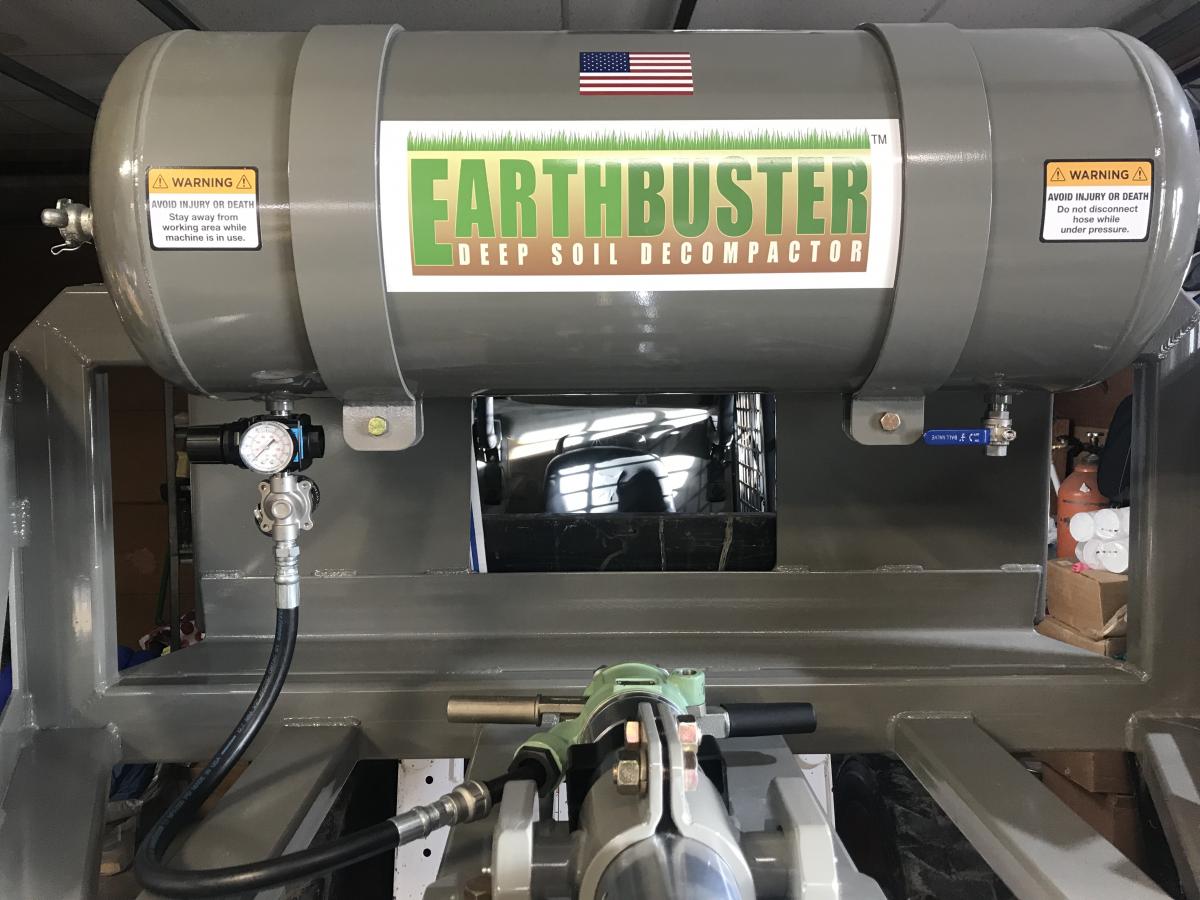

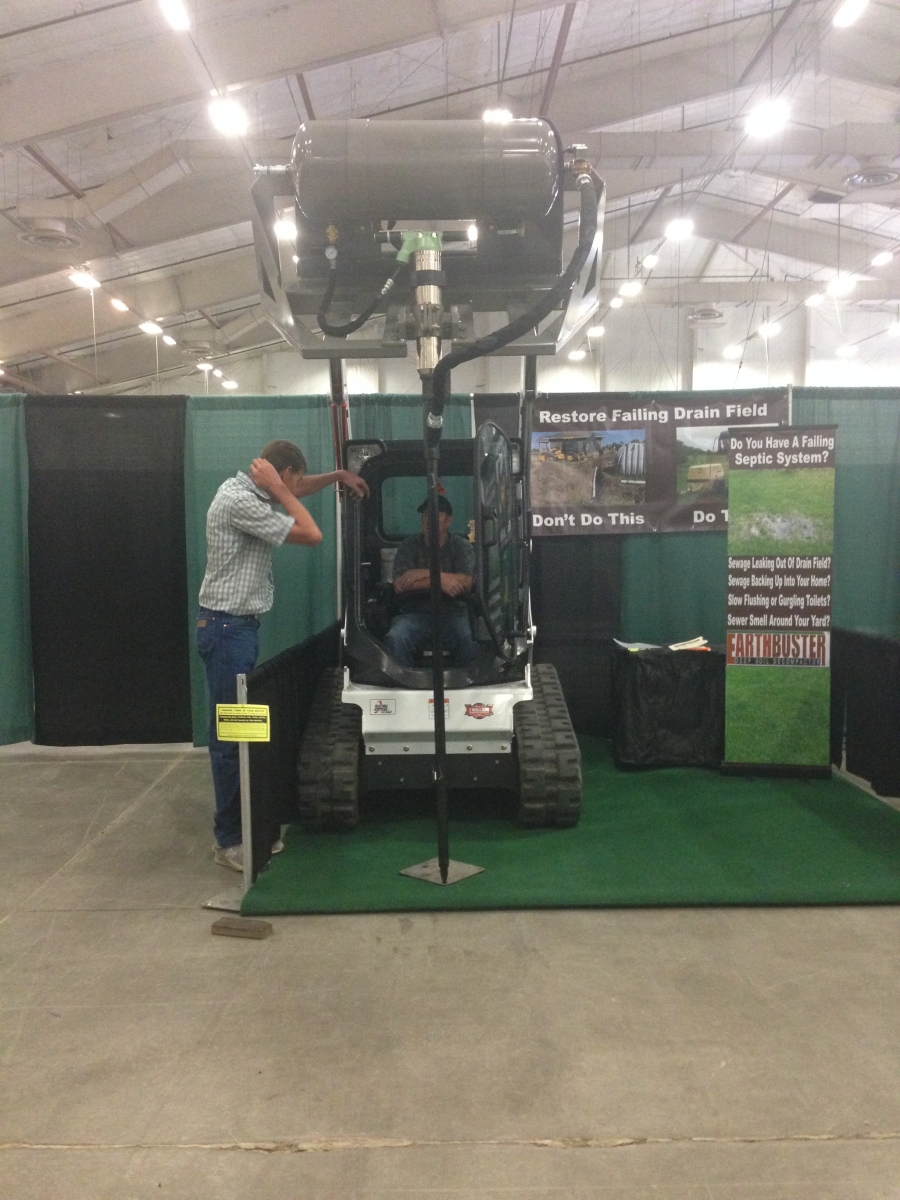

Front View
The metal plate in the floor here is just to keep the probe from poking through the carpet.
